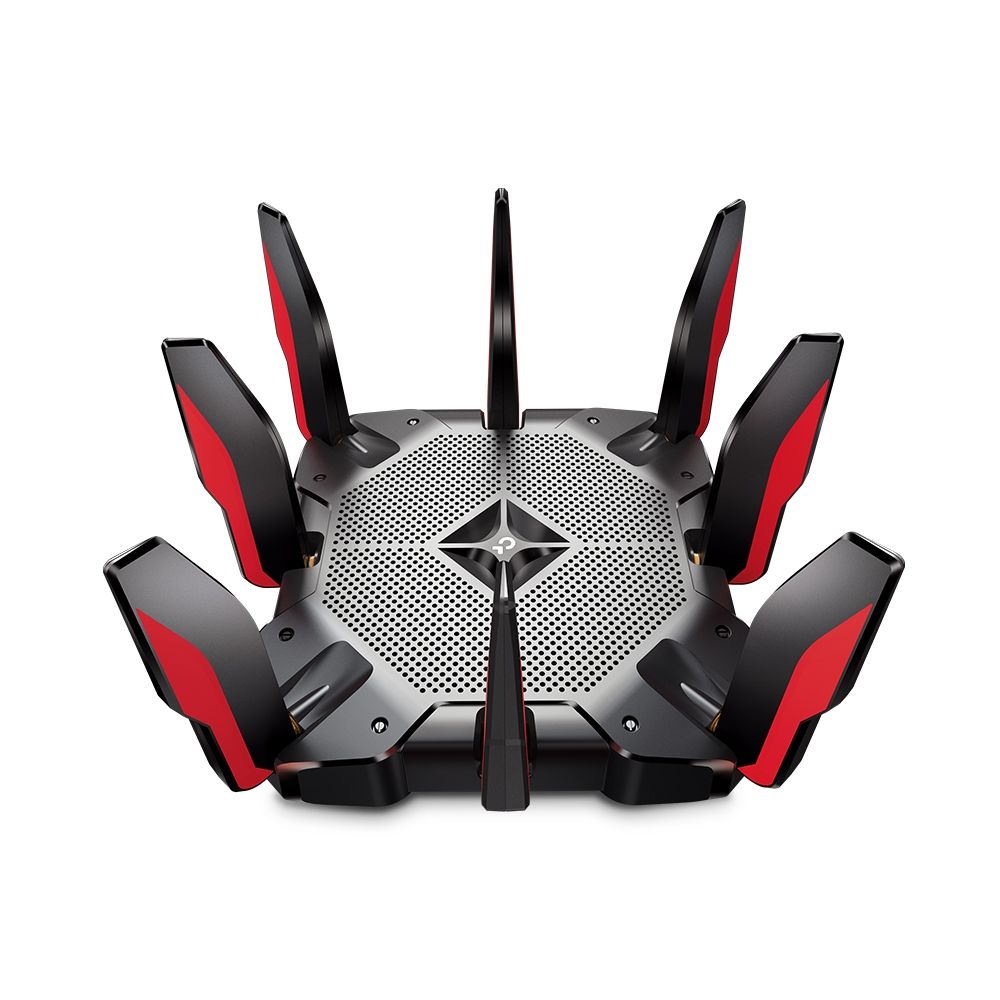

Archer AX11000 Gaming Router Wi-Fi 6 AX11000 Ba Băng Tần

a Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus

---

Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network VPN Server OpenVPN
PPTP VPN Client OpenVPN
PPTP
L2TP WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

HARDWARE
Processor	1.8 GHz 64 Bit Quad-Core CPU

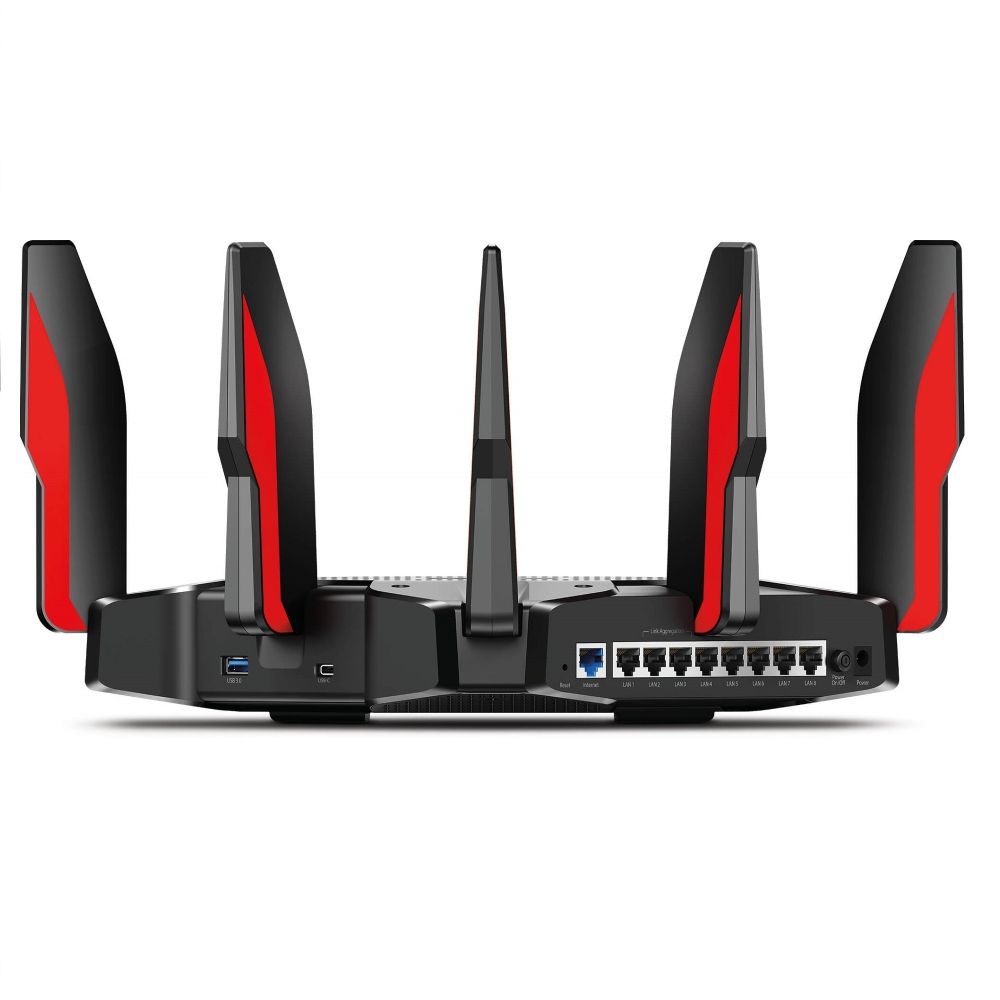

Ethernet Ports	1× 2.5 Gbps WAN Port 8× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports

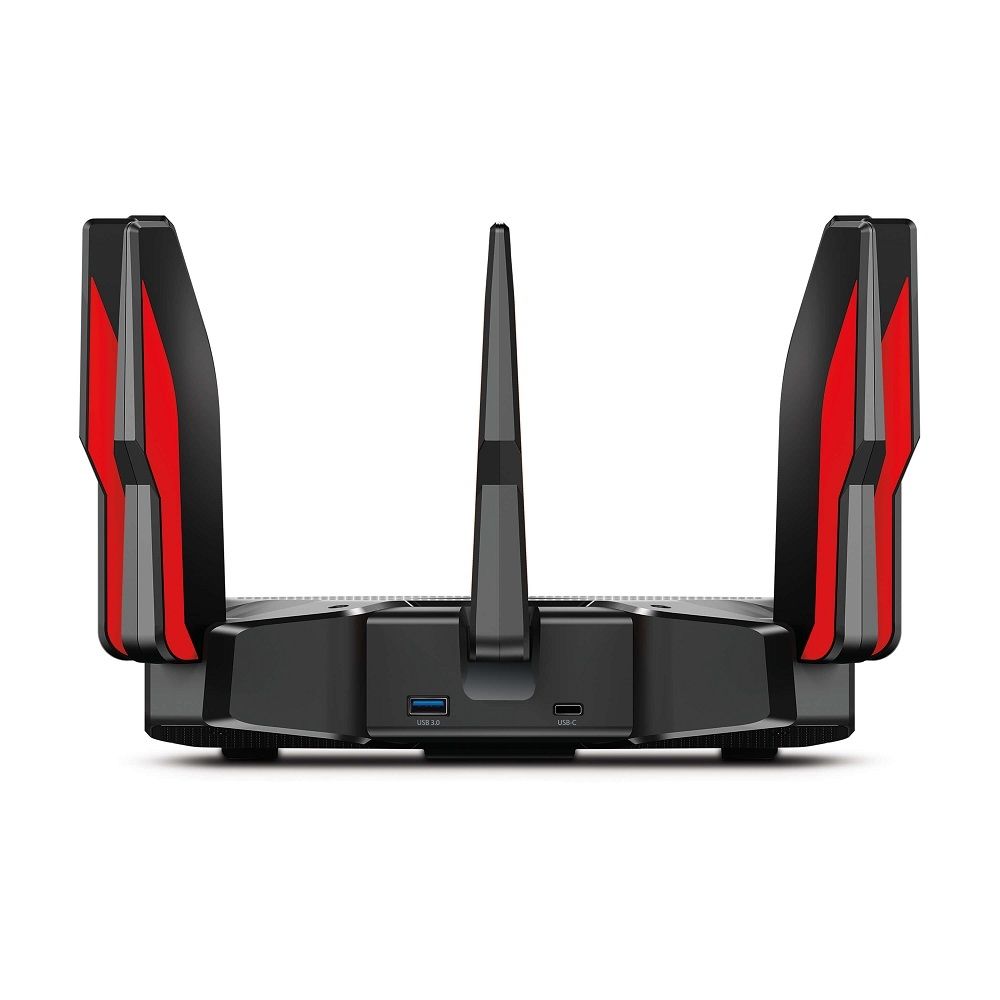

USB Support	1× USB-C 3.0 Port 1× USB-A 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 5 A

SOFTWARE
Protocols	IPv4 IPv6
Game Center	Game Accelerator Detects and optimizes gaming streams to keep latency as low as possible Game Statistics Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail Game Protector Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits	HomeCare™
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	Game Accelerator QoS QoS by Device HomeCare™ QoS QoS by Application
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management Features	Tether App Webpage Check Web Emulator>

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity	5 GHz_1: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz： 11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

PHYSICAL
Dimensions (W×D×H)	11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)
Package Content	Wi-Fi Router Archer AX11000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
